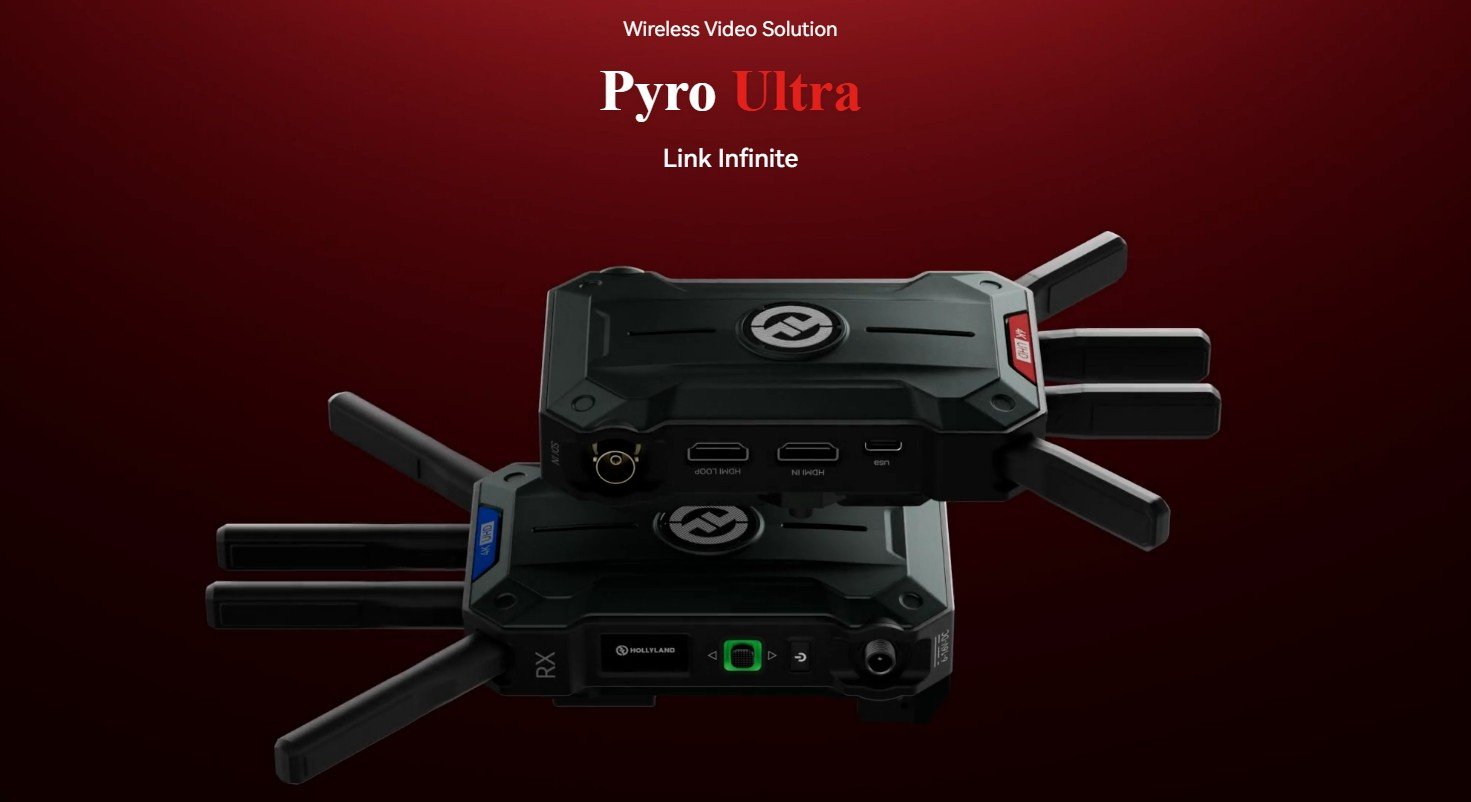

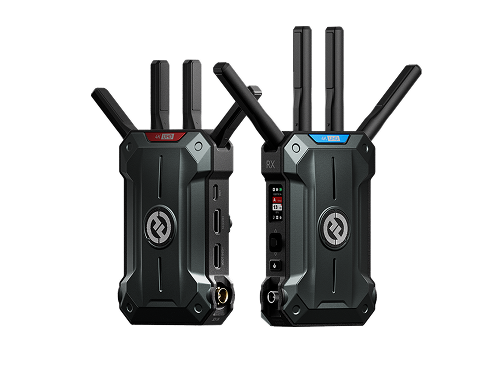

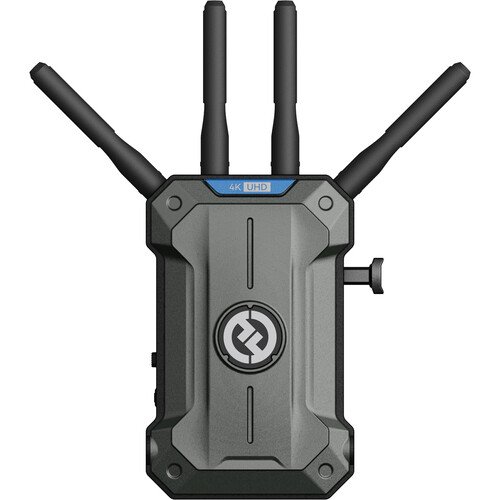

Pyro Ultra
Pyro Ultra is a revolutionary wireless video transmission system that connects one transmitter to unlimited receivers, expanding monitoring without limits. With true 4K/60fps capture, and Focus Mode reducing latency to as low as 20ms, Pyro Ultra brings you cinematic clarity and tracks every lens adjustment with absolute precision. Powered by our proprietary TWiFi technology, it offers a line-of-sight transmission range of up to 4,900 ft. (1.5 km), with automatic frequency hopping for stable, interference-free transmission, so you can push further, work faster, and collaborate without compromise.

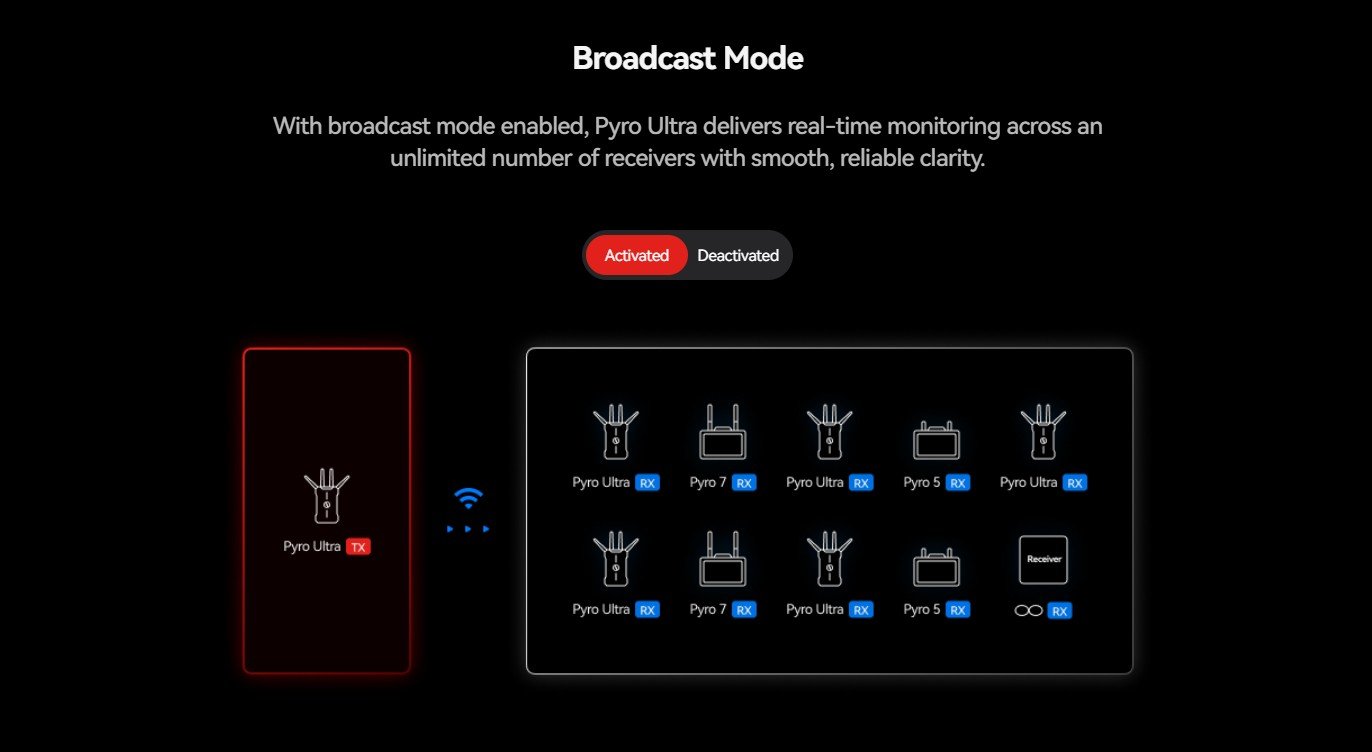

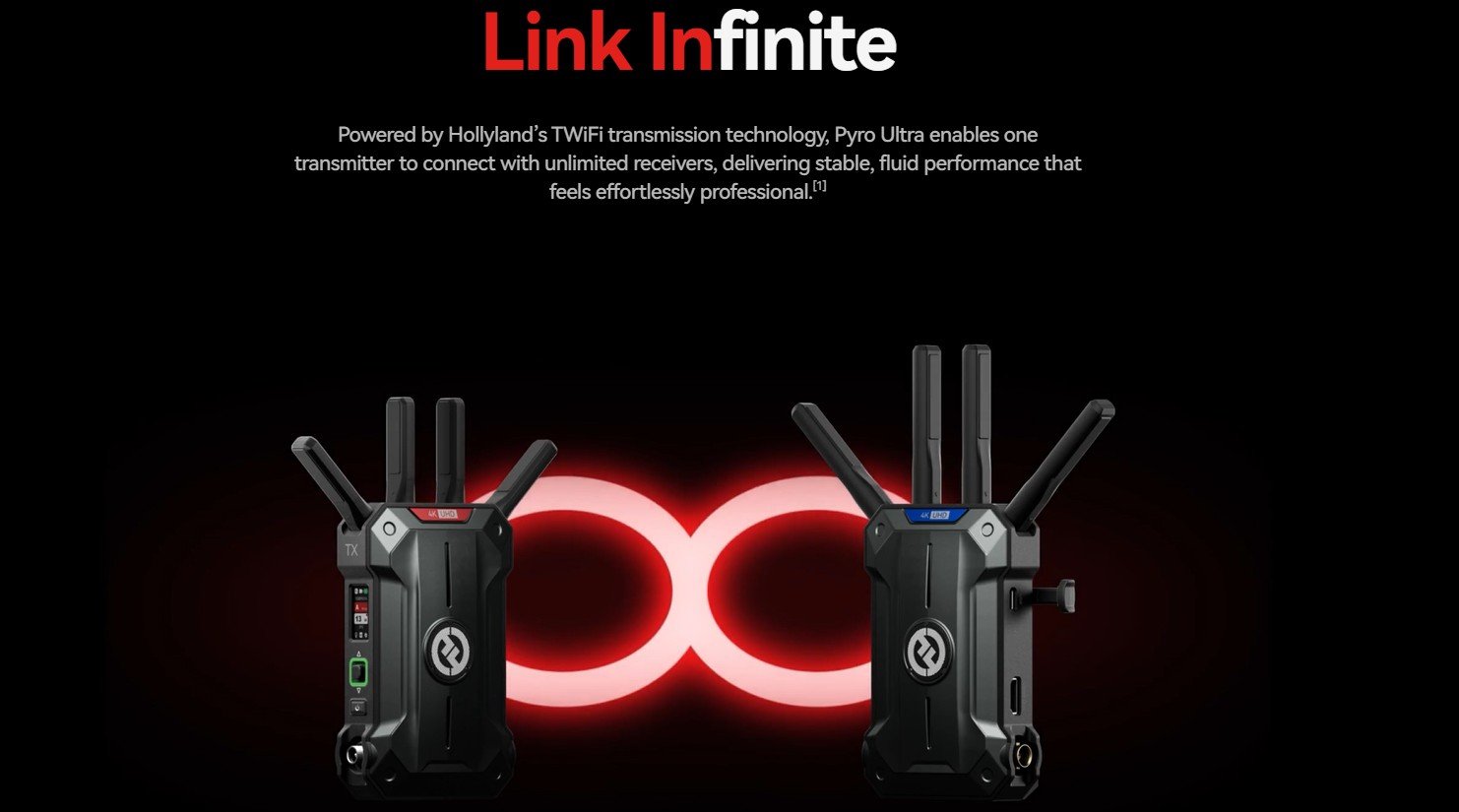

As part of the Pyro ecosystem, Ultra integrates with the entire Pyro family to scale workflows across productions of any size. One transmitter. All Pyros. Unlimited receivers. This is Ultra.
₹ 95,000.00 – ₹ 165,000.00 +GST
Buy Now| Persons | 1TX 1RX, 1TX 2RX |
|---|
| Transmitter | Receiver | |

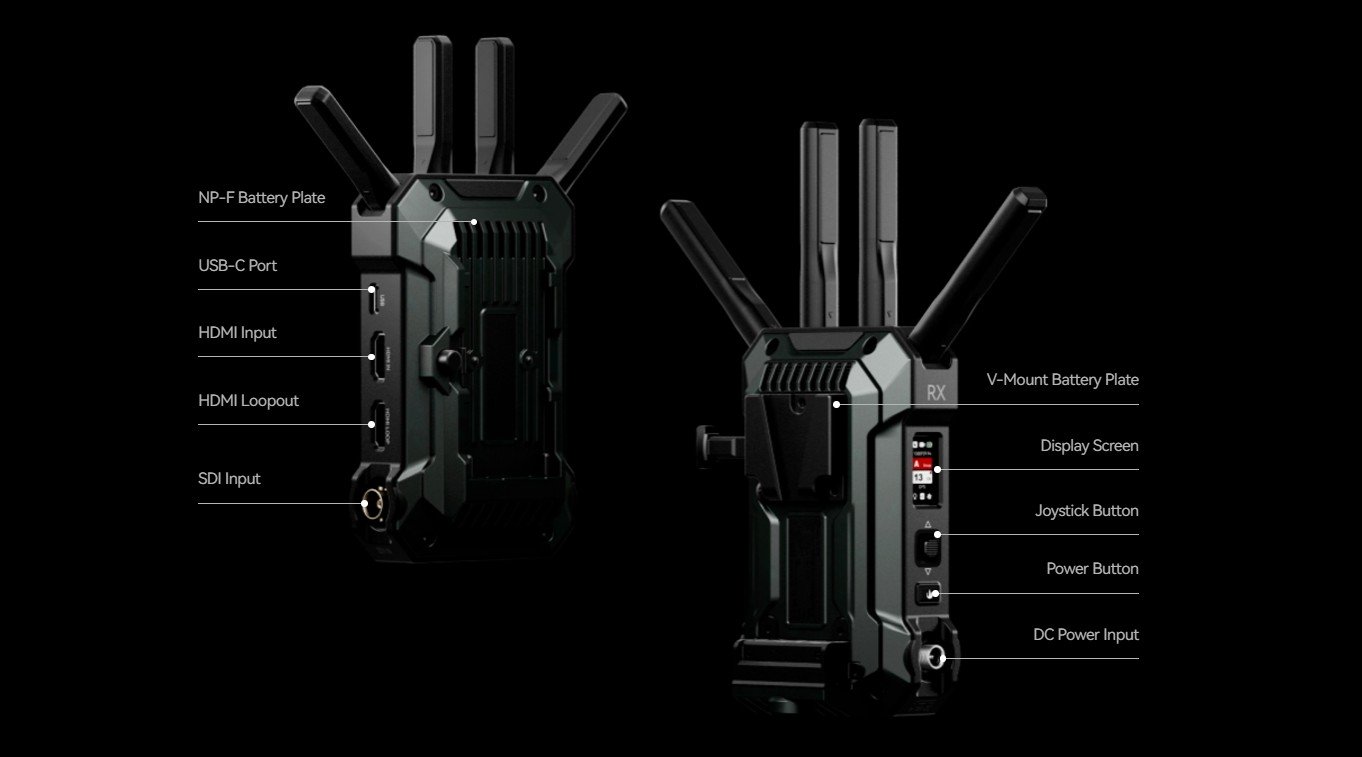

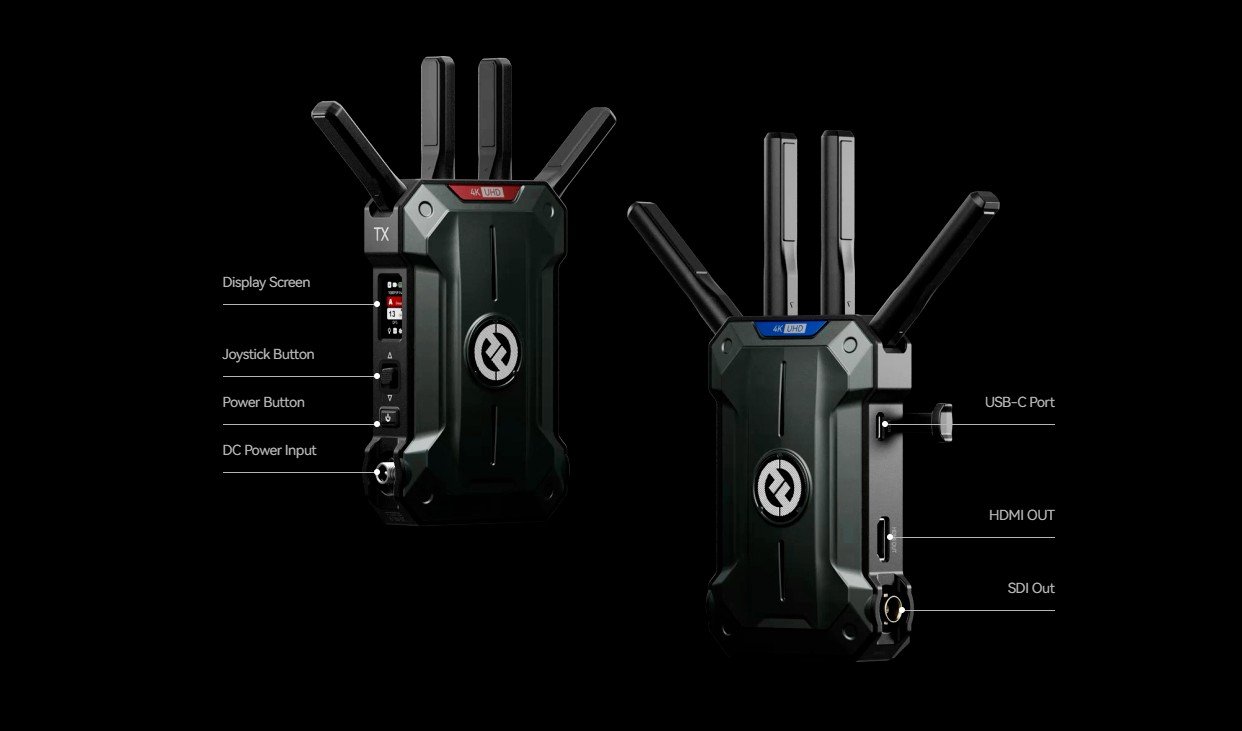

| Interfaces | DC IN: 2.0 Barrel Connector HDMI IN: HDMI 2.0 HDMI LOOPOUT: HDMI 2.0 SDI IN: 3G SDI Type-C: USB 2.0 Antenna: SMA Male Connector | DC IN: 2.0 Barrel Connector HDMI OUT: HDMI 2.0 SDI OUT: 3G SDI Type-C: USB 3.0 Antenna: SMA Male Connector |
| Power Supply Voltage Range | Battery Power Input: 6.8-8.4V DC Power Input: 6-16V | Battery Power Input: 11.8-16.8V DC Power Input: 6-16V |
| Power Consumption | Non-broadcast: 11W Broadcast: 14W | 7W |
| Net Weight | 320g | 320g |
| Dimensions | (L*W*H): 124.5*80*34.9mm | (L*W*H): 124.5*80*34.9mm |
| TX Power | < 23dBm | / |
| RX Sensitivity | / | Non-broadcast: -85dBm Broadcast: -80dBm |
| Input/Output Video Formats | HDMI: 720p50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 4k(3840*2160)23.98/24/25/29.97/30/50/59.94/60 SDI: 720p50/59.94/60 1080i50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 | HDMI: 720p50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 4k(3840*2160)23.98/24/25/29.97/30/50/59.94/60 SDI: 720p50/59.94/60 1080p23.98/24/25/29.97/30/50/60 |

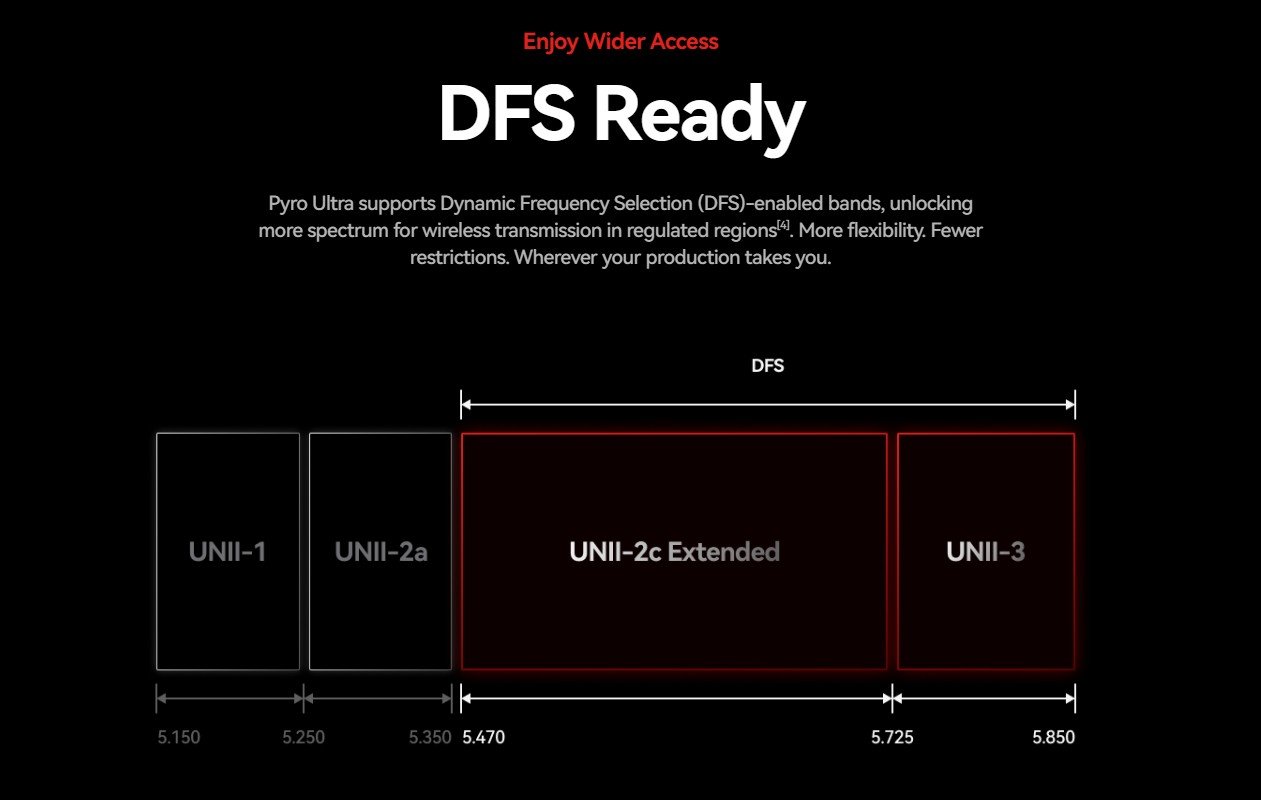

| Operating Frequency[8] | 5G 5.150 – 5.250 GHz 5.250 – 5.350 GHz 5.470 – 5.725 GHz 5.725 – 5.850 GHz 2.4G 2.412 – 2.484 GHz | 5G 5.150 – 5.250 GHz 5.250 – 5.350 GHz 5.470 – 5.725 GHz 5.725 – 5.850 GHz 2.4G 2.412 – 2.484 GHz |
| Transmission Latency | Focus Mode: 1080p25 ≥ 20ms | Focus Mode: 1080p25 ≥ 20ms |
| Bandwidth | 20MHz (Broadcast: 40 MHz) | 20MHz (Broadcast: 40 MHz) |
| Power Consumption | < 1A@12V | |
| Dimensions | 302mm × 181.52mm × 63.6mm | |
| Weight | 1797.5g (63.4oz) | |
| Temperature Range | -10 – 45℃ (working) -20 – 60℃ (storage) |
