Pyro 7 Monitor
KEY FEATURES
- 1TX & 4RX
- 2.4 GHz & 5 GHz Dual Band
- TX, RX, and Monitor – All in One

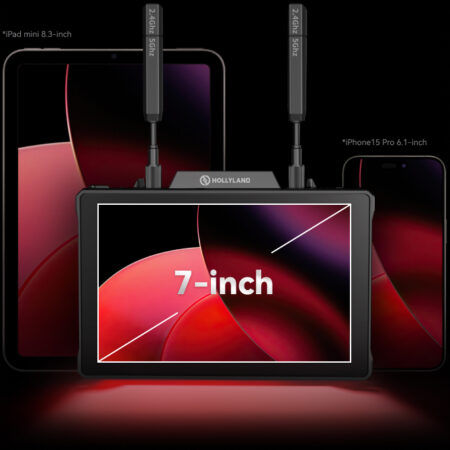

- 7-Inch & 1200 nits
- SDI & HDMI Loopout
- 1300ft (400m) & 0.06s Latency
- Auto Frequency Hopping
- Dual-View Quick Monitoring Switch

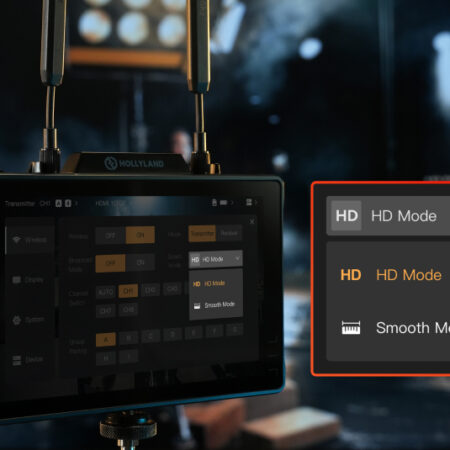

- Precise Image Analysis
- RTMP Streaming

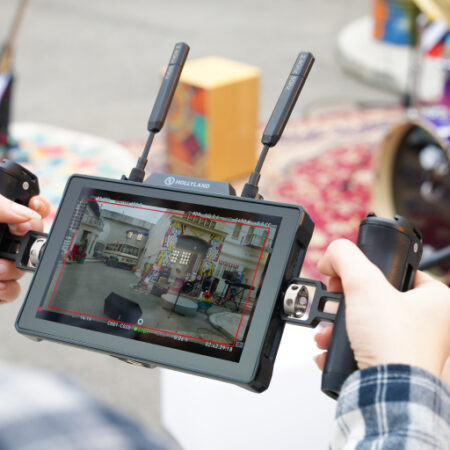

Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.
₹ 49,000.00 +GST
Buy Now
|

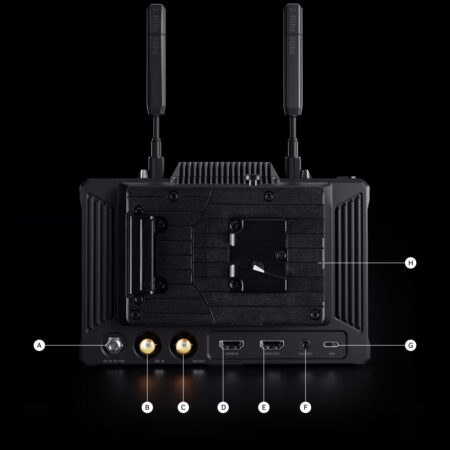

Input Port |
HDMI 1.4b + 3G SDI |
|
Output Port |
HDMI 1.4b + 3G SDI
|
| Antenna |
RP-SMA Male*2
|
| Power Input |
DC Input (2.0mm core socket)
|
|
Headphone Jack |
3.5mm
|
|
Upgrade Port |
USB-C (USB 2.0 OTG) SD Card Slot |
| Firmware Upgrade Interface | USB Type-C |
| Screen Size |
7″ Touchscreen
|
| Screen Resolution |
1920 × 1200 pixels
|
| Pixel Density |
323 PPI
|
| Aspect Ratio | 16 : 9 |
| Screen Brightness |
1200 nits
|
| Contrast Ratio | 1000 : 1 |
|
Power Input Voltage |
10 – 18V/2.5A DC Input (nominal 12V)
|
| Power Consumption |
< 22W
|
| Net Weight | 545g (19.2oz) with battery plate included and external antennas excluded |
|
Dimensions (L × W × H) |
180 × 127 × 31.8mm (7.1″ × 5″ × 1.25″)
with battery plate and external antennas excluded
|
|
Operating Frequency
|
5.1 – 5.8 GHz; 2.412 – 2.484 GHz
|
|
Transmit Power
|
≤ 23 dBm
|
|
Receiver Sensitivity
|
-80 dBm
|
|
Display Latency
|
< 50ms
|
|
Transmission Latency
|
≈ 60ms (test data when 1080p60 signals are transmitted in a laboratory)
|
|
LOS Range
|
•1,300ft (400m)* (Connection to the monitoring app may affect the range);
•650ft (200m)* (in Broadcast mode)
|
|
Bandwidth
|
20 MHz; 40 MHz (in Broadcast mode)
|
|
Audio Format
|
HDMI 1.4b 8-Channel
|
|
Operating Temperature
|
– 10℃ – 45℃
|
|
Storage Temperature
|
– 40℃ – 60℃
|
|
HDMI Input
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 23.98/24/25/29.97/30
|
HDMI Loopout
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 23.98/24/25/29.97/30
SDI Loopout
720p50/60
1080i50/60
1080p24/25/30
1080p 50/60
1920*1080 24/25/30
HDMI/SDI Output
720p50/60
1080i50/60
1080p24/25/30
1080p 50/60
1920*1080 24/25/30
|
|
SDI Input
1080p50/59.94/60 (Level A)
1080p50/59.94/60 (Level B)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080psf23.98/24
1080psf25/29.97/30
720p50/59.94/60
|
HDMI/SDI Loopout
1080p50/59.94/60 (Level A)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p23.98/24
1080i50/59.94/60
720p50/59.94/60
HDMI/SDI Output
1080p50/59.94/60 (Level A)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p23.98/24
1080i50/59.94/60
720p50/59.94/60
|
