2. Features
1.It can capture one single channel HD HDMI video signals.
2.The input and output video signal can reach 1080p/60 Hz.
3.It is compatible with UVC video capture and YUV 422 video output.
4.Support UAC&UVC，support 48 KHz PCM audio
5.It doesn’t need to install a driver, and it is truly plug-and-play.
6.It is compatible with Windows, Linux, OS X operating systems.
7.With Mic recording input .
8.USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0.
9.The process of video and audio is done by the grabber and will not occupy the CPU.
10.It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
11.It can automatically detect the input audio formats and swift it to 48KHz PCM audio.
12.Multiple grabber can be used on one PC
13.The firmware can be updated.
3. Specification
Connection:
| Input interface | 1 HDMI interface 1 Mic interface 1 Micro USB Power interface |
| Output interface | USB3.0, *300-350MB/s throughput USB2.0, *40MB/s throughput 1 HDMI loop out interface |
| HDMI input | 1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P,1280×1024, 1280×960, 1024×768, 800×600, 640×480 |
| HDMI audio input | 1 LPCM audio signal |

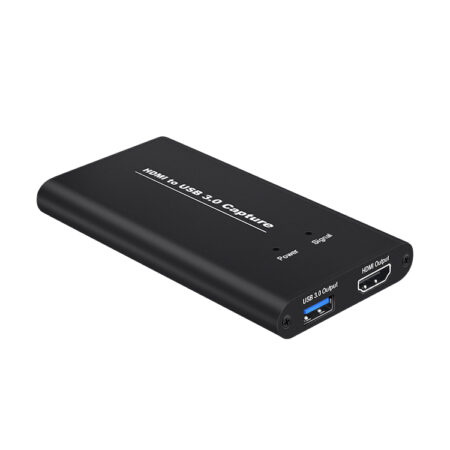

1.Signal Indicator:This LED illuminates when the device capture the video normally.
2.Power Indicator:This LED illuminates when the device is connected to computer USB port.
3.HDMI Output：HDMI to display device
4.USB3.0 Output:This slot is where you connect to the USB3.0 input of the computer or NoteBook.

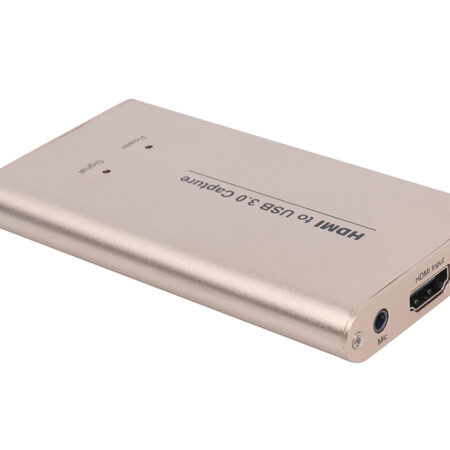

5.Mic: Sound input when record video
6.HDMI Input: This slot is where you connect the HDMI source output from Camera, Vidicon, Game box, IPTV box,and so on.
7.Power Port:Connect the power supply when the power supply is insufficient
