1×4 SDI Splitter – Support 120m

  • 4-PORT HDMI 2.0 SPLITTER – Distributes HDMI video & audio from a single source to 4 HDMI displays simultaneously without signal degradation. Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth.
  • 4K HDR VIDEO & AUDIO – Supports up to 4K @60Hz (4:4:4 8-bit), HDR at 4K @60Hz (4:2:0 10-bit), 3D, Deep Color. Supports 7.1/5.1/2.1-ch audio, and the latest HDMI digital audio formats.
  • AUTO VIDEO DOWNSCALING – Supports mixed 4K & 1080p display outputs. A 4K video source device can simultaneously display 4K content to 4K monitor(s) and 1080p content to 1080p monitor(s) via downscaling. Does NOT support mixed 2K & 1080p outputs. Use Elgato or other game capture device to record game play footage in 1080p, while actually playing in 4K. *Note: Does NOT support resolution downscaling from 4K @60Hz “YUV 4:2:2” to 1080p
  • ADVANCED EDID MANAGEMENT – Supports 8 comprehensive EDID settings, The default EDID setting (U/U/U/U) works for most situations, including 4K to 1080p downscaling. Atmos is supported via AVR EDID mode (U/d/d/U). Firmware upgradable. Contact us if you’re unsure which EDID to use

 8,000.00 +GST

Buy Now Compare
Availability: In Stock
  • Distributes 1 SDI input to 4 SDI outputs simultaneously
  • Single unit can transmit up to 120m/390ft (Belden 1694A)
  • Re-clocking function capability—unlimited repeater connection
  • Support SDI Standard :SD-SDI,HD-SDI, 3G-SDI
  • Data Rates: 270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
  • Signal Type: SMPTE 292M, SMPTE 259M, SMPTE 424M
Re-clocking Function Yes
SDI Standards
HD/SD-SDI Detection Auto
Supported Protocols SMPTE 259M SMPTE 292M SMPTE 424M
Data Rates  270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
Video Support 480i@60hz, 720p@50/59.94/60hz, 1080i@50/59.94/60hz, 1080p@23.98/24/25/29.97/30/50/59.94/60hz
SDI Signal Type SMPTE-292M, SMPTE-259M, SMPTE-424M
Output Impedance 75 ohms
Cable Equalization HD-SDI up to 120m SD-SDI up to 200m Unlimited repeater connection
Audio Sampling rate 48Khz
Impedance 75 ohms

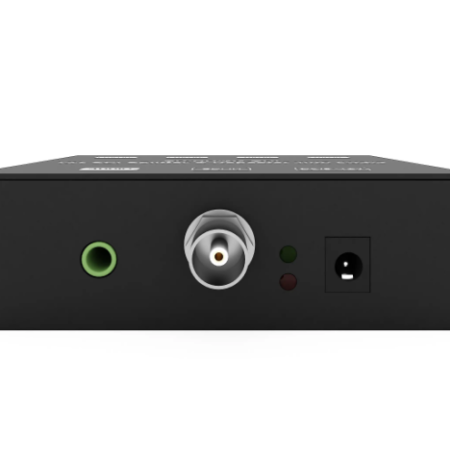

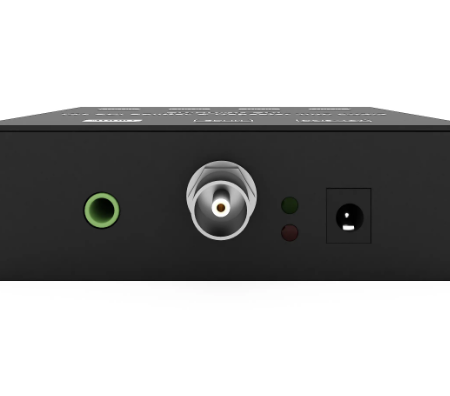

Input 1x BNC [SDI]
Output , 3.5mm stereo audio jack
Power Adapter 5V1A DC
Power Consumption(Max) 2W
Dimension(LxWxH) L115xW64xH30mm
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (no condensation)
Housing Material Metal case
